Volume Pumps
These efficient, Iight weight aluminum die-cast pumps delivers high volume water and are powered by strong and durable Honda engines. They use highly effective mechanical seals with a special carbon ceramic which provides extra durability. The units are protected by sturdy steel Rollover pipe frames.
Models

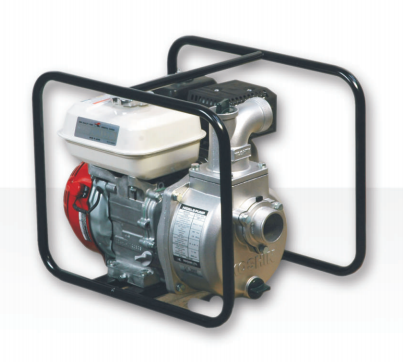

SEH-50X |
SEH-80X |
 |
 |

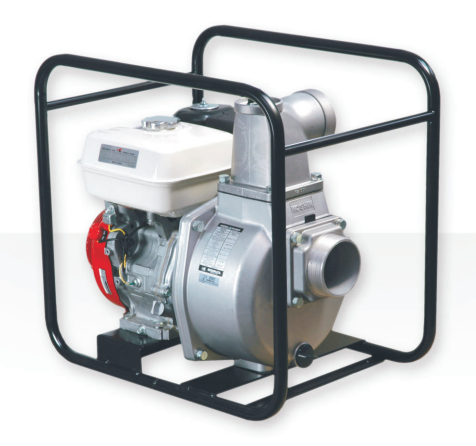

SEH-100X |
|
 |
|
Specifications
|
Model |
SEH-50X |
SEH-80X |
SEH100X |
|
Connection Dia |
50mm |
80mm |
100mm |
|
Connection Thread |
Outerpipe Thread |
||
|
Total Head |
30m 98ft |
26m 85ft |
28m 92ft |
|
Delivery Volume |
600L/min |
930L/min |
1450L/min |
|
Max suction head |
8m |
||
|
Model |
Honda GX120 |
Honda GX160 |
Honda GX240 |
|
|
Forced air cooled 4 cycle Gasoline Engine |
||
|
Exhaust Volume |
118cc |
163cc |
242cc |
|
Horse Power |
2.8ps/3600rpm |
3.8ps/3600rpm |
6.0ps/3600rpm |
|
Fuel |
Automobile non-lead gasoline |
||
|
Fuel Tank Capacity |
2.5L |
3.6L |
6.0L |
|
Fuel Consumption Hour |
About 2.5hours |
About 2.7hr |
About 3.2hr |
|
Gross Weight |
24kg |
34kg |
54kg |
|
Dimensions |
506x402x421 |
525x399x476 |
650x453x660 |
|
Packing Unit |
1 |
||
